Highly Water and Oil Resistant for Automotive, Machinery and Foods Industry
- IP69K: Highly water resistant
- Tough structure for food processing line needs washing with high temperature and high pressure water
- Achieves long sensing distance
- 8 turn sensitivity adjustment potentiometer (BGS type)
IP69K protection
IP69K is an rating of German standard DIN 40050-9 extends the IEC 60529 rating system for high-pressure, hightemperature wash-down applications.
Test condition:
A sensor on the turn table that rotates 5 times per minutes.
Pressure: 80~100bar
Flow rate: 14~16 litre/minute
Temperature: +80℃ / -5℃
Distance from nozzle: 100~150mm
Nozzle angle: 0°, 30°, 60°, 90°
Testing period: 30sec per every angle
* IP69K doesn’t mean to guarantee that the sensor works under the
test condition above. The sensor won’t work correctly when the lens
gets wet and the light is refracted.
High-pressure, high-temperature, detergent wash-down resistant Tough structure
Longest sensing distance in the class
High brightness LED by 4 element enables longest sensing distance in the class.
8 turn sensitivity adjustment (BGS Type)
8 turn sensitivity adjustment potentiometer helps easy mounting and easy position adjustment.
Longest Sensing Distance in the Industry with Standard Size
- Best-in-class Photosensors realized by high power LED
- 3 basic types with detecting distance of 25 meter (thru-beam)
Thru-Beam type
Z2T-2000N／Z2T-2000P
Z2T-2000CN4／Z2T-2000CP4
Retro Reflective type
Z2R-400N／Z2R-400P
Z2R-400CN4／Z2R-400CP4
Diffuse type
Z2D-80N／Z2D-80P
Z2D-80CN4／Z2D-80CP4
For material handling(Z2R-400)
Car on the production line(Z2T-2000)
Counting wheels(Z2R-400)
| Sensing distance | 25m | 0.01～4m ※1 | 0～80cm ※2 |
| Response time | 500μs max. | ||
| Spot size | φ800mm @ 20m | φ200mm @ 4m | φ110mm @ 80cm |
| Operation mode | Light ON / Dark ON selectable | ||
| LED Indicator | Output : orange, Stable : green | ||
| Light source | Red LED | ||
| Sensitivity adjustment | 1-turn volume | ||
| Control output | NPN or PNP Open collector, 100mA Max. DC30V Max. (Residual voltage 1.8V Max.) | ||
| Supply voltage | DC10-30V Including 10% ripple(P-P) | ||
| Power consumption | Emitter : 20mA Max. | 20mA Max. | |
| Receiver : 15mA Max. | |||
| Protection category | IP67 | ||
| Shock Resistance | Approximately 100 G (1000 m/s2), 3 times in each of the X, Y, and Z directions | ||
| Vibration Resistance | 10-55Hz, 15mm X,Y,Z, each. 2 hours | ||
| Ambient temp. / humidity | -25～＋55℃ / 35～85% RH (No condensation or freezing) | ||
| Storage temp. / humidity | -40～＋70℃ / 35～95% RH (No condensation or freezing) | ||
| Material | Case : ABS (glass included) Front Cover , Lens : PMMA | ||
※1. Reflector V-61
※2. White 90% 100mm×100mm
Flexible Installation M18 Threaded or 24.1mm Pitch Holes
- Complete selection of sensing types including
- Transparent Object Detection
- M18 Threaded Front Mounting
- Stable Sensing Even For Plastic/Glass
Wide Selection
The Y series is offered with seven different models. Thru-beam, Diffuse, Retro-reflective, Transparent object detection, Convergent Beam (two types) and BGS (Background suppression). There is a model for use in almost any application.
M18 Threaded Front Mounting
The sensor can be easily mounted by inserting into an 18 mm opening. There are also conventional mounting holes in the sensor body for added flexibility.
Pig-tail Connector
M12 pig-tail type are available for easy maintenance.
Rugged Waterproof Construction
The sensor has an IP67 rating. It is ideal for use in applications where it may be exposed to water spray.
Stable Sensing Even For Plastic/Glass
The YR-Q series was designed for the detection of transparent targets.These are ideally suited for clear plastic and glass bottle applications.
Verifying car position

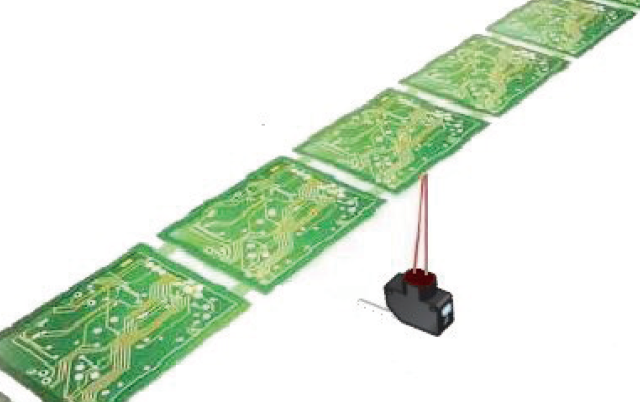

For Detecting PWB
For Conveyor
For Beverage industry
Specifications
| Sensing distance | 30m (1180 inch) | 0.4m (15.7 inch) | 3.5m (140 inch) V-61 reflector | 1m (39.3 inch) P45A reflector | 43mm (1.7 inch) | |
| Light source | Red LED (visible) | |||||
| Hysteresis | N/A | N/A | N/A | N/A | 10% max | |
| Response time | 0.5msec | |||||
| LED Indicator | 3 Indicators (green indicator only :Emitter of YT-1180) Yellow: output Green: stable Red: alarm - overload | |||||
| Operation mode | Light ON and Dark ON outputs provided | |||||
| Sensitivity adjustment | 1turn potentiometer | |||||
| Control output | NPN or PNP open collector, 100mA max. / 30VDC | |||||
| Environmental illuminance | Sunlight : 10,000 lux, Incandescent lamp : 3,000 lux max | |||||
| Ambient temp / humidity | -25℃ to 55℃ / 35 to 85% RH | |||||
| Storage temp / humidity | -40℃ to 70℃ / 35 to 90 % RH | |||||
| Supply voltage | 10 - 30VDC incl. 10% ripple | |||||
| Current consumption | emitter : 15mA max. | |||||
| receiver : 20mA max. | ||||||
| Conformity | CE , JIS/C4525 | |||||
| Circuit protection | Reverse polarity, transient voltages,Output overcurrent | |||||
| Material | ABS with 20% glass (case), PMMA (lens) | |||||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X,Y, and Z directions | |||||
| Shock resistance | Approximately 100 G (1000 m/s2), 3 times in each of the X, Y, and Z directions | |||||
| Protection category | IEC 144, IP67 | |||||
Super Thin Size and Flexible Installation by Universal Mounting Holes
- Super Side-sense Type projects the beam from the 5mm(0.19 inch) of wide edge of the sensor
- M8 pig-tail connector types are available for all models
- Tough mechanics. 100G Shock Resistance and IP67 Water tightness
- Easily visible indicator LED can be seen even from the back
2 type selection
Super Side-Sense type
(Side or Flat)
Flat type Front Sense
M8 pig-Tail connector for easy maintenance.
IP67 rating
Operating LED visible in the back
It's convenient. Verifying the operation of the sensor is easy.
Universal mounting holes.
Flexible mounting for easy installation.
3.5mm thin dimensions (Flat type)
Leading edge of sensing functions are designed in this thin size. Ideal for space saving. (Side sense type : 5mm)

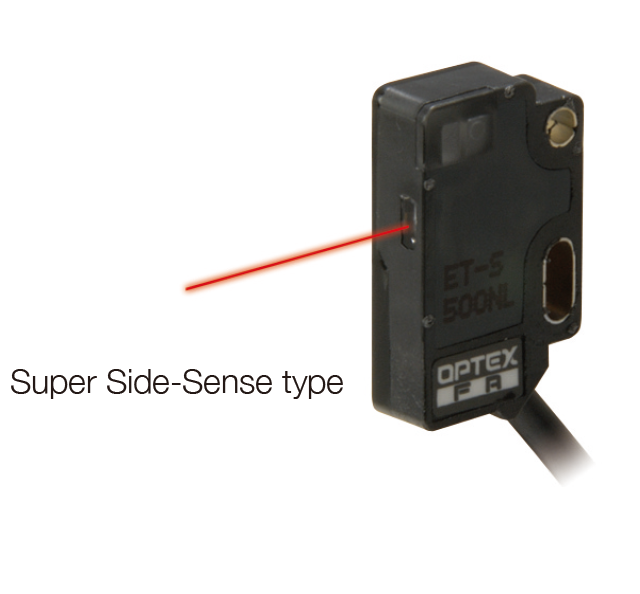

Super Side-Sense type
Unique Side-Sensing Type available in Diffuse,Convergent and Thru-Beam. M8 Pigtail models in both 3 and 4 pin types.
- EL-S series Convergent Type
15mm (0.6 inch) sensing distance. Light-On/Dark-On models available. +/-0.1mm (0.004 inch) repeat accuracy.
2mm (0.07 inch) project spot diameter at 15mm distance. 0.5 msec. response speed. - ED-S series Diffuse Reflective Type
30mm sensing distance. Light-On/Dark-On models available. +/-0.05mm (0.002 inch) repeat accuracy.
30mm sensing distance with 10% Hysteresis. - ET-S series Thru-Beam Type
500mm (19.7 inch) sensing distance. Light-On/Dark-On models available. +/-0.1mm (0.004 inch) repeat accuracy.
0.25 msec. response speed.

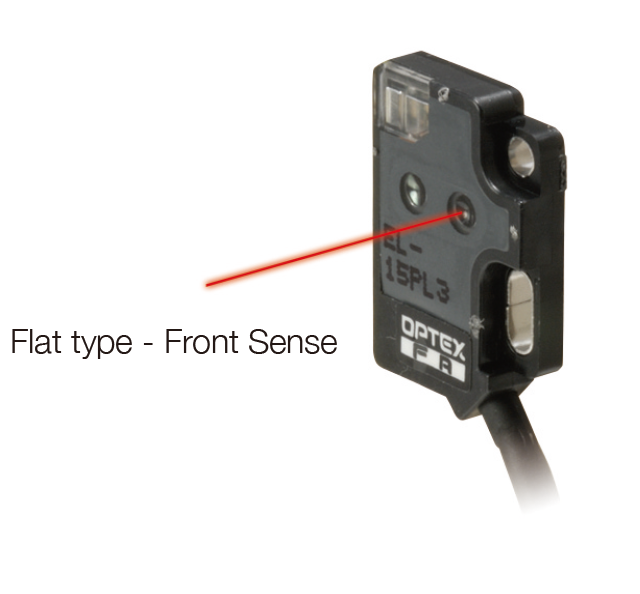

Flat type - Front Sense
Thin and flat design for space saving. Three different models of Convergent models.
- EL - series Convergent Type
3 different sensing distance are available.
30mm (1.18 inch),15mm (0.6 inch), and 8mm (0.31 inch) for close installation.
Compact housing is ideal for space saving. - ED - series Diffuse Reflective Type
Standard diffuse reflective type with 100mm (3.94 inch) sensing distance.
- ET - series Thru-Beam Type
0.5msec response speed and sharp optical system designed in 12 × 20 × 3.5 mm dimensions.
Water Resistant and Vibration Resistant by Epoxy Filled Sensor Housing
- Epoxy filled sensor housing provides IP67G rating for highly water resistant
- 100G of shock resistance
- M8 QD types are available for over all types
Epoxy filled housing provides
highly water resistant.
Elongated mounting holes for flexible installation.
（ Applicable for both M3 and M4 ）
The elongated mounting hole (25.4 mm pitch) allows the sensor to be used with various types of mounting brackets.
M8 QD for easy maintenance
The M8 QD connector types are small enough to be installed in areas where mounting space is limited.
Visible red spot
Visible red LED spot for easy alignment of the sensor. The projected spot is approx. 2 mm dia. at 30 cm distance from the sensor.

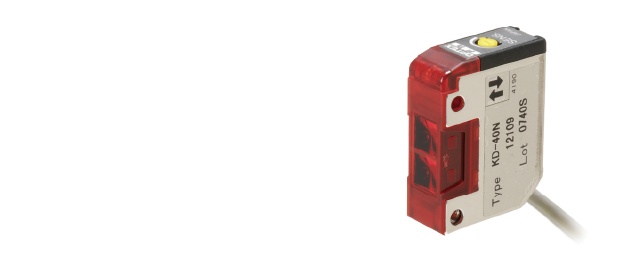

Ruggedize Structure with Stainless Steel Protection
- Test input to verify operation
(KT-700 Thru-beam type) - IP67 rating, rugged design
Stainless steel housing.
The stainless steel housing helps to protect the sensor against mechanical damage if it is struck by passing objects.
Built-in mounting nuts.
The built-in mounting nuts make installation easy and efficient, the problem of damaged threads due to over-tightening has been eliminated.
Surpasses the VDE standard for electrical noise immunity.
The noise resistant internal circuitry is designed in accordance with the strict VDE standard.
Further, in-house Feilen Noise testing assures high reliability and compliance with international standards.
pecifications
| Sensing distance | 7 m | 2.5 m | 40 cm> | 1 - 9 cm | |
| Light source | Red | ||||
| Min detectable object | φ7 mm | φ40 mm | ー | ー | |
| Response time | 1msec Max | 0.7msec Max | |||
| Hysteresis | NIL | 20% Max | 10% Max | ||
| Sensitivity adjustment | Not equipped | Single turn potentiometer | |||
| LED Indicator | Single Indicator | ||||
| Control output | NPN or PNP Open collector, 100mA Max / 30V DC | ||||
| Test input | Equipped | Not equipped | |||
| Operation mode | Light ON / Dark ON selectable | ||||
| Insulation resistance | Min. 20 M Ohm / DC500V | ||||
| Supply voltage | 10 to 30 V DC including 10% of ripple | ||||
| Power consumption | 35mA Max | 30mA Max | |||
| Conformity | JIS, UL, CE, VDE | ||||
| Ambient temp / humidity | -25 to ＋55℃ / 35 to 85%RH | ||||
| Environmental illuminance | Sun Light:20,000 lux max. Incandescent lamp:4,000 lux max. | ||||
| Shock resistance | Approximately 100 G (1000 m/s2), 3 times in each of the X, Y, and Z directions | ||||
| Vibration resistance | 10 to 55 Hz amplitude 1.5mm, X-Y-Z for 2 hours | ||||
| Protection category | IEC 144 IP67, VDE Level 3 | ||||
| Material | ABS (Case), PC (Lens), SUS304 (Cover) | ||||
| Weight (Net) | 25g (20g for emitter of thru-beam type) | ||||
Small Size Sensor for Flexible Installation
- Built-in polarizing filter
(Retro-reflective) type - 100G shock resistance rating
- M8 QD for all types
High rigidity for 100G shock resistance / IP67
Rigid design for high resistance to mechanical shock such as contact or collision.
0.5ms high speed response
High speed response even with transparent targets.
Double feeding of ice cream cup (ST-400)
cuit diagram
NPN type
PNP outpute
Emitter

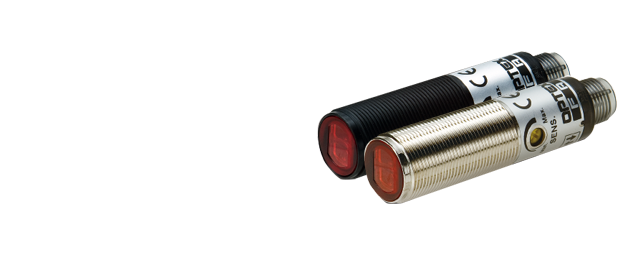

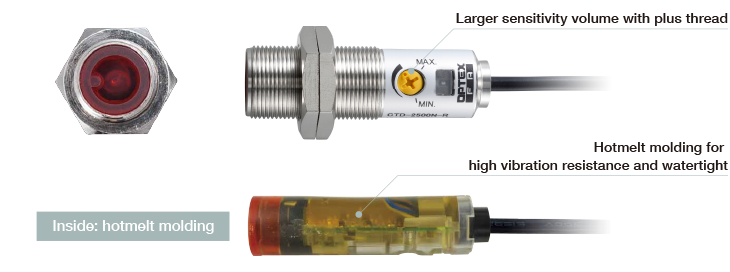

New Industry Standard M18 Threaded Type Sensor
- Well known for its conventional shape but not conventional in quality
- An ultimate cylindrical sensor designed in Japan
Custom ASIC with Power Circuit
The electronic circuit consists mainly of Optex FA's custom ASIC with only 27 electronic components. The ASIC contains power circuit and this helps to avoid defects by electric damage from the power line.
RoHS products
Both plastic housing and metal housing are RoHS compliant. With an Eco-minded electric design, the current consumption is only 18mA (Diffuse type)
Hysteresis of Max 10%. Between black/white colors.
Between black/white colors, hysteresis is Max at 10% (Diffuse type). C2DM-11 gives a sensing distance of 110mm for white object and 90mm for black object.
Trimmer of Silicon plastic for high durability against chemical impact.
The trimmer is tightly sealed against water with IP67 rating. Silicon plastic trimmer is the best solution against water, oil. chemical and environmental heat.

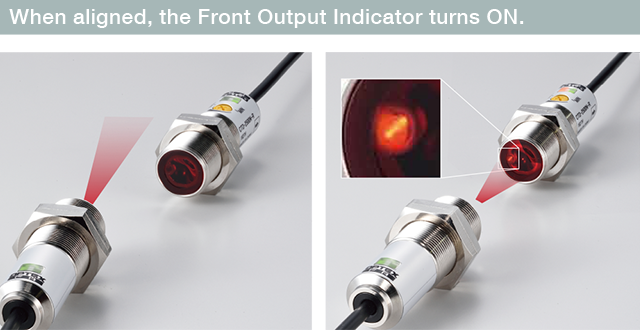

Easy Alignment and installation
Ample sensing area provides easy alignment when installing the thru-beam sensor. For instance, there is an allowance of 70cm to align the sensor at 10M distance. The highly bright LED is visible at long distance as well.
Nickel coating of 20μ thickness for anti-rust solution.
Metal type consists of brassnickel housing with extra nickel coating of 20u thickness. This coating is done for the external and internal of the housing. It helps protect the metal housing against rust and toughen it
BGS type sensors
BGS type sensors are designed to detect any target regardless of the color and/or background.
Durable to 70N (7kg) of tension
The cable is firmly fixed to the internal circuit board so that it can withstand pulling tension of up to 70N (7kg).
Specifications
| Sensing distance | 20m | 0.01 ～ 4m (V-61) | 0.01 ～ 3.5m (V-61) | |
| Spot size | φ1100 mm / 20m | φ270 mm / 4m | φ240 mm / 3.5m | |
| Light source | Red LED | IR LED | ||
| Supply voltage | DC10 ～ 30V including ripple (P-P) 10% | |||
| Power consumption | Emitter ： 20mA Max | 20mA Max | ||
| Receiver ： 15mA Max | ||||
| Hysteresis | - | |||
| Response time | 0.5ms Max | |||
| Control output | NPN/PNP Open Collector 100mA Max / DC30V Max（Residual voltage Max 1.8V / 100mA Max） | |||
| Operation mode | Light ON / Dark ON selectable by control wires | |||
| Sensitivity adjustment | 1 turn pot. | |||
| LED indicator | Output indicator (Orange LED) / Stability indicator (Green LED) | |||
| Environmental illuminance | Sunlight : 10,000 lux, Incandescent lamp : 3,000 lux Max | |||
| Vibration resistance | 10 ～ 55Hz amplitude 1.5mm X-Y-Z each 2 hours | |||
| Shock resistance | Approximately 50 G (500 m/s2), 3 times in each of the X, Y, and Z directions | |||
| Ambient/ Storage temperature | Ambient temperature ： - 25 ～ +55 ℃ ( no freezing ) / Storage temperature ： - 30 ～ +70 ℃ | |||
| Ambient/ Storage humidity | Ambient humidity ： 35 ～ 85%RH / Storage humidity ： 35 ～ 95%RH | |||
| Protection/ Material | IEC IP67(common to any type) Plastic housing ： PBT（glass included ） / Metal housing ：BSBM, Front Cover , Lens ： PMMA | |||
*1 White Paper 90%
| Sensing distance | 11cm *1 | 40cm *1 | 80cm *1 | 300mm *1 | |||
| Spot size | φ8 mm / 11cm | φ20 mm / 40cm | φ30 mm / 80cm | φ15 mm / 300mm | |||
| Light source | Red LED | ||||||
| Supply voltage | DC10 ～ 30V including ripple (P-P) 10% | ||||||
| Power consumption | 20mA Max | 35mA Max | |||||
| Hysteresis | 10% Max | ||||||
| Response time | 0.5ms Max | 1ms Max | |||||
| Control output | NPN/PNP Open Collector 100mA Max / DC30V Max（Residual voltage Max 1.8V / 100mA Max） | ||||||
| Operation mode | Light ON / Dark ON selectable by control wires | ||||||
| Sensitivity adjustment | 1 turn pot. | 4 turn pot. | |||||
| LED indicator | Output indicator (Orange LED) / Stability indicator (Green LED) | ||||||
| Environmental illuminance | Sunlight : 10,000 lux, Incandescent lamp : 3,000 lux Max | ||||||
| Vibration resistance | 10 ～ 55Hz amplitude 1.5mm X-Y-Z each 2 hours | ||||||
| Shock resistance | Approximately 50 G (500 m/s2), 3 times in each of the X, Y, and Z directions | ||||||
| Ambient/ Storage temperature | Ambient temperature ： - 25 ～ +55 ℃ ( no freezing ) / Storage temperature ： - 30 ～ +70 ℃ | ||||||
| Ambient/ Storage humidity | Ambient humidity ： 35 ～ 85%RH / Storage humidity ： 35 ～ 95%RH | ||||||
| Protection/ Material | IEC IP67(common to any type) Plastic housing ： PBT（glass included ） / Metal housing ：BSBM, Front Cover , Lens ： PMMA | ||||||
*1 White Paper 90%
Positioning of wooden plate
Counting food packages
Best-in-class Robust and Powerful M18 Threaded Type Sensor
- Large sensing distance
- Full-metal housing in brass
- Easy to Align even the long distance
New C-R Series
Cylindrical photoelectric sensor with long-distance detection, robustness, and excellent usability.
The new C-R Series has much higher performance than conventional models, and is more easy-to-use.
This is a new generation photoelectric sensor with the high detection performance, cost performance ratio, and robustness that are required of cylindrical sensors.
Large Sensing Distance
Achieved 25m detection distance, the longest for through beam types! Meets the need for long-distance application.

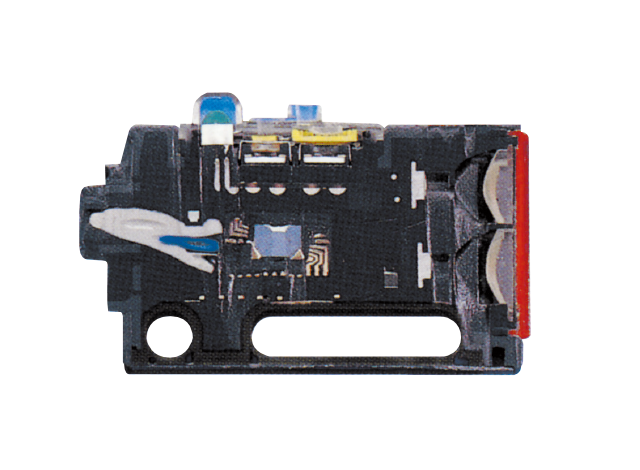

Hotmelt molding
High vibration resistance
Hotmelt molding enables high vibration resistance up to 100Hz, 8 hours. (For details, see Specification)
Watertight：IP67
The C-R Series meets the conditions for the watertight IP67 rating.
Can be used on work sites or devices that are exposed to splashing water such as the food and beverage industry.
Full-metal Housing in Brass
Robust design
In the conventional model, the tip and the end of the housing were made of plastic.
New C-R Series achieved the high robustness by full-metal housing.
Easy to Align even the long distance

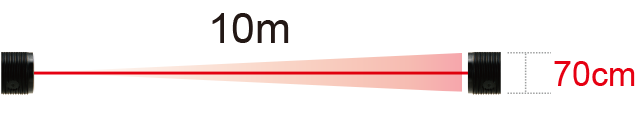

Visible red LED
Red LED, which allows easy alignment, has been adopted for all models as the light source. The spot beam location is visible, reducing the time required for alignment.
In addition, spot beam flare is minimized, which improves the visibility when compared to conventional models.
Front Output Indicator is equipped on the receiver (Through beam type)
Output indicator is equipped not only on the side of the receiver, but also on the front. When panning the emitter for alignment, the ON/OFF state of the indicator is visible from the emitter side, so alignment can be performed more easily by a single operator.
Various Types in Connection are Available
- Easy and quick disconnection for quick maintenance
- Simply remove the main body from the base to replace the sensor
- Long sensing distance: 70 meters (thru-beam type)
- Terminal connection (AC types - V4 series)
Easy replacement
New style of QD! Simply replace the main body leaving the base and cable in place.
Strong light source! Ideal for dusty/dirty conditions.
Class B type, applicable to household use. Severely controlled to self-emission noise.

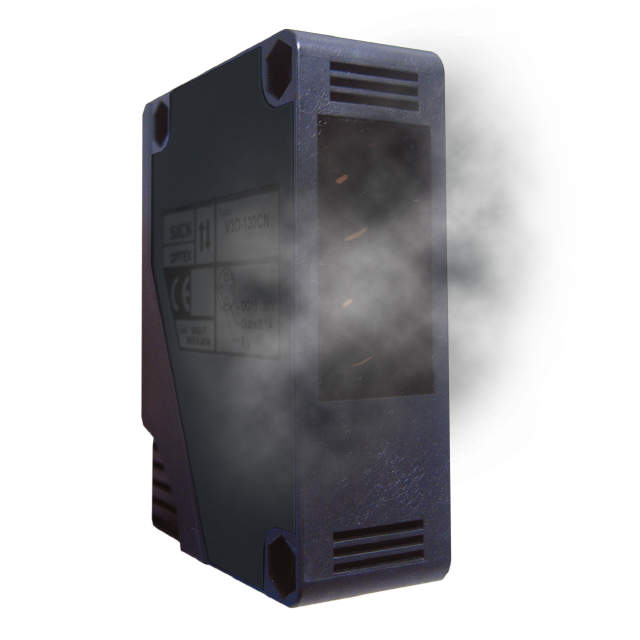

Long Sensing Range breaking through even in a foggy condition.
Terminal layout for easy connection(V4 series).

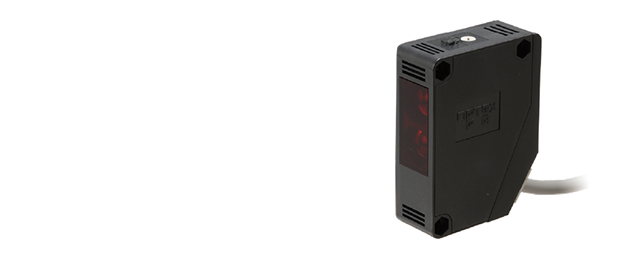

Long Sensing Distance and Stable Sensing by its Large Lenses
- BGS types with a rugged duty housing
- Up to 100 cm sensing distance
(BGS-2V100) - IP67, QD types are available
A large projecting and receiving lens results in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.

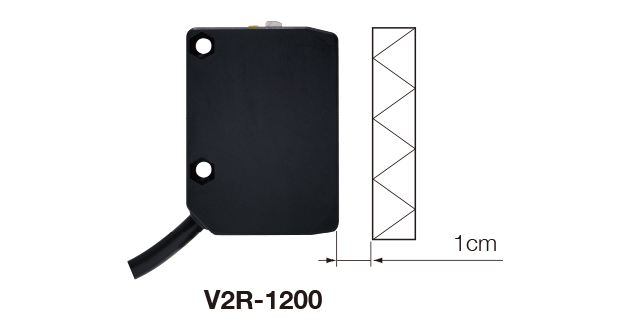

Only 1cm of dead area （Retro-reflective types）
Connector can be rotated for added flexibility when mounting. （DC Power type）
The connector rotates 90 degrees for added flexibility when mounting. IP67 is maintained even with the connector.
Gate control (V2T-7000)
Magazines on roller conveyor (BGS-2V50)
Parking control(V2T-7000)
Tire counting (V2R-1200)
